RADIANT BARRIER REFLECTIVE PANELS


Radiant Barrier Reflective Roofing and Siding Colors

"Cool Roof" - Energy consumption is decreased

(LEED Certification)

Energy efficient radiant barrier reflective metal roofing and siding

Energy Efficient
Radiant Barrier Reflective
Roofing and Siding



COMMERCIAL ROOFING & SIDING
CURVED CORRUGATED PANELS
 HORIZONTAL METAL SIDING PANELS



Many energy efficient reflective Kynar 500/Hylar 5000 Fluorocarbon coatings are formulated to meet a variety of local, regional and federal Green Design performance requirements including LEED and CRRC.

Energy efficient reflective Fluropon coatings are the preferred choice among environmentally responsible architects, building owners, and building manufacturers.



Ideal for roofing and siding panels on buildings that need to maximize energy efficiency and display a beautiful color finish....

Energy efficient radiant barrier reflective Fluropon coatings are field-proven, high performance exterior quality finishes designed to enhance the energy efficiency of buildings.

Cool roofing is a part of an interdependent system of exterior roofing surfaces, substrates, underlayment, configurations, ventilation, and insulation.

Reflective Fluropon coatings are available in a variety of colors.

Premium fluoropolymer coatings contain 70% Kynar 500 or Hylar 5000 resins and solar reflective pigments.

This powerful combination provides a durable color coating that resists heat absorption and enables the building to cool down faster. As a result, the air-conditioner does not run as much and energy consumption is decreased. All Fluropon reflective coatings have a minimum solar reflectance value of 0.25. The typical emittance value of these coatings is 0.85 to 0.90.

Energy efficient reflective roofing and Siding is ideal for use in:

  • Commercial Buildings
  • School Buildings
  • Retail Stores
  • Office Buildings

Flexospan Product Data Sheet

for the LEED Green Building Rating System

New Construction & Major Renovations (LEED-NC)

Version 2.2, October 2005

The following information is provided to assist your LEED project team in determining how Flexospan products can contribute toward earning specific LEED credits. For information not included within the scope of this data sheet, please contact Flexospan.

Flexospan Roofing and Siding

Materials & Resources:
Flexospan Roofing & Siding

icon-pdf
LEED - Product Data Sheet

MR Credit 4.1

 Recycled Content: 10%

1 Point

MR Credit 4.2

 Recycled Content: 20%

1 Point

The steel used in Flexospans Roof Panels contains an average post-consumer recycled content of 23.5%, and an average pre-consumer recycled content of 6.4%. These values are based on data from the Steel Recycling Institute publication Steel Takes LEED with Recycled Content, (January, 2006).




MR Credit 5.1

 Regional Materials: 10%

1 Point

MR Credit 5.2

 Regional Materials: 20%

1 Point

Flexospans roofing and siding panels are manufactured in Sandy Lake, Pennsylvania. All of Flexospan's panels may contribute to MR Credit 5.1 and MR Credit 5.2 if the project location is within a 500 mile radius of Sandy Lake, Pennsylvania.


MATERIALS & RESOURCES (MR)

Credit 4   Recycled Content  1-2 Possible Points

     According to U.S. Green Building Council LEED 2009 for New Construction and Major Renovations, the intent of this credit is To increase demand for building products that incorporate recycled content materials, thereby reducing impacts resulting from extraction and processing of virgin materials. (LEED 2009 for New Construction and Major Renovations, Page 52).

     The steel used in Flexospans panels typically contains an average post consumer recycled content of 25.6%.

     Because of unique project circumstances, it is the responsibility of your LEED project team to determine if your project is eligible for certification and whether Credit 4 for Recycled Content points will be available for the Flexospan product supplied to your particular project.


MATERIALS & RESOURCES (MR)

Credit 5   Regional Materials 1-2 Possible Points

     Flexospan wall and roof panels are manufactured at Sandy Lake, Pennsylvania.

     Because of unique project circumstances, it is the responsibility of your LEED project team to determine if your project is eligible for certification and whether Credit 5 for Regional Materials will be available for the Flexospan product supplied to your particular project.


Indoor Environmental Quality:
Flexospan Roofing & Siding




EQ Credit 4.1

 Low-Emitting Materials:   Adhesives and Sealants

1 Point

This credit requires that the VOC content for adhesives and sealants must be less than the limits established by the South Coast Air Quality Management District, Rule #1168. The factory or field-applied sealant (Tremco JS-773) used with some panel profiles has a VOC content of (180 grams/liter), which is less than the maximum limit of 250 grams/liter established by this regulation for architectural sealants. Therefore, the Tremco JS-773 sealant meets the requirements of EQ Credit 4.1.


EQ Credit 4.2

 Low-Emitting Materials: Paints and Coatings

1 Point

1 Point Intent To reduce the quantity of indoor air contaminants that are odorous, irritating and/or harmful to the comfort and well-being of installers and occupants. Requirements Paints and coatings used on the interior of the building (i.e., inside of the weatherproofing system and applied onsite) must comply with the following criteria as applicable to the project scope1: n Architectural paints and coatings applied to interior walls and ceilings must not exceed the volatile organic compound (VOC) content limits established in Green Seal Standard GS-11, Paints, 1st Edition, May 20, 1993. n Anti-corrosive and anti-rust paints applied to interior ferrous substrates must not exceed the VOC content limit of 250 g/L established in Green Seal Standard GC-03, Anti-Corrosive Paints, 2nd Edition, January 7, 1997. n Clear wood finishes, floor coatings, stains, primers, and shellacs applied to interior elements mustl not exceed the VOC content limits established in South Coast Air Quality Management District (SCAQMD) Rule 1113, Architectural Coatings, rules in effect on January 1, 2004. Potential Technologies & Strategies Specify low-VOC paints and coatings in construction documents. Ensure that VOC limits are clearly stated in each section of the specifications where paints and coatings are addressed. Track the VOC content of all interior paints and coatings during construction.

Flexospan Roofing

Sustainable Sites:
Flexospan Roofing

Click to Download
LEED - Product Data Sheet


SS Credit 7.2

 Heat Island Effect:  Roof only

1 Point

In order to achieve this credit, the roofing panel color must have a Solar Reflectance Index as calculated in accordance with ASTM E 1980.   (SRI) equal to or greater than:

29 (for steep-sloped roofs - greater than 2:12)

or

78 (for low-sloped roofs - equal to or less than 2:12)



SRI - Colors with a minimum Solar Reflective Index of 29

Note: 29 is the LEED Certification Standard for roof slopes greater than 2:12

regal parchmnt sierra rawhide
#360 Regal White
(Kynar®/Hylar®
-type finish only)
#320 Parchment #370 Sierra Gold #280 Rawhide
ltgray surrey
#310 Light Gray #390 Surrey Beige


Energy efficient colors with a minimum Solar Reflective Index of 29 - White, Parchment, Regal White, Rawhide, Sierra Gold, Surrey Beige, Light gray.


SRI - Color with a minimum Solar Reflective Index of 78

Note: 78 is the LEED Certification Standard for roof slopes equal to or less than 2:12

regal
#360 Regal White
(Kynar®/Hylar®
-type finish only)


White is the energy efficient color with a minimum Solar Reflective Index of 78.
Kynar/Hylar Fluorocarbon coatings are designed for
commercial architectural applications.

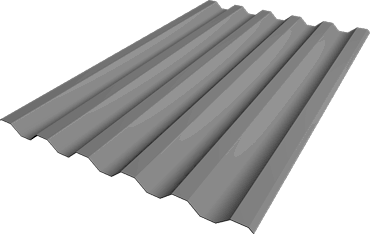

Flexbeam
Flexbeam Metal Siding Panel

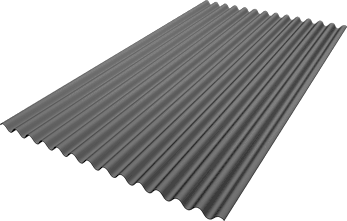

Corrugated
Corrugated 3/4" Metal Siding Panel

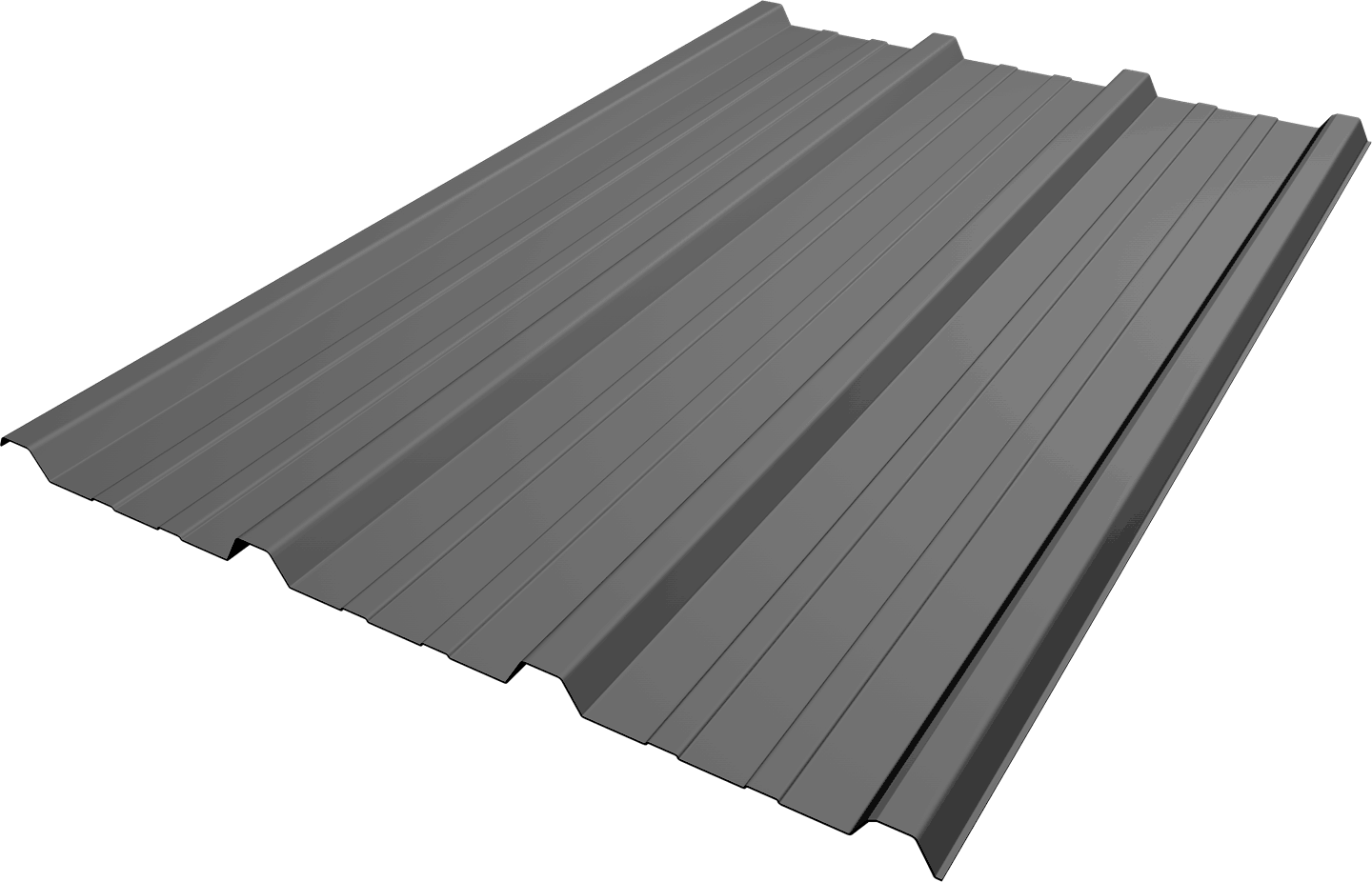

Flexrib
Flexrib Metal Siding Panel

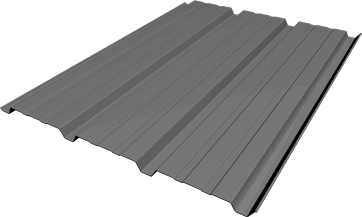

Vertarib
Vertarib Metal Siding Panel

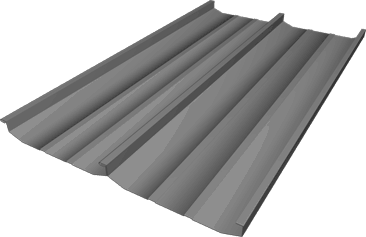

FSS-18
FSS-18 Standing Seam Roofing Panel

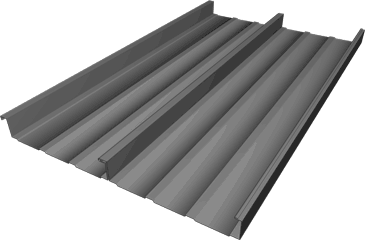

FSS-316
FSS-316 Standing Seam Roofing Panel




Cool Roofing and Siding Colors are available in the following profiles:

  • Flexbeam
  • Flexrib
  • Vertarib
  • - 2.67 x 1/2", 3/4", 7/8"
  • FSS-18 Standing Seam Roof
  • FSS-316 Standing Seam Roof

The panels can be radius curved for special design effects.

Innovation & Design Process:
Flexospan Roofing & Siding




ID Credit 1.x

 Innovation in Design: Cradle to Cradle Certification

1 Point

In early 2007, the U.S. Green Building Council established an ID Credit point for the use of products certified under the Cradle to Cradle Certification Program. This program, administered by MBDC (McDonough Braungart Design Chemistry), evaluates products and their manufacturing process on the basis of human/environmental impact, material reutilization, energy and water use, and social responsibility. A product that meets the certification criteria is designated as either a Silver, Gold, or Platinum level product and labeled as Cradle to Cradle Certified. Flexospans roofing and siding Panels are Cradle to Cradle Silver Certified.

For additional information regarding the use of Cradle to Cradle Certified products in the LEED certification process, consult the U.S. Green Building Council

 (www.usgbc.org) and MBDC (www.mbdc.com)


Click on the links below and go to Flexospan's Product Data Sheets for LEED certification points.

 Recycled & Regional: 1-2 Possible
 Indoor Quality: 1-2 Possible Points
 Heat Island Effect: 1 Possible Point
 Innovation & Design: 1 Possible Point


Flexospan - LEED Points

Product Data Sheets

LEED Green Building Rating System




Flexospan Steel Buildings - Metal Roofing, Siding, Purlins, Girts, Self-Storage
